Aluminum Door Hardware & Finishes

01 · Door Types

Available Configurations

Pre-glazed. Trimmed and Modular configurations available. All doors are built to your exact specifications.

Partition · Modular Design

Glass Wall

ThinWall Trimmed

Fixed glass partition wall, configurable to integrate one or more swing, sliding, or pivot doors. Sized to opening; matching frame finish across all panels.

Sliding · Modular Design

Sliding Door

ThinWall Trimmed

Top-hung sliding panel for a maintenance-free operation and clean architectural lines. A flush, gesture-friendly opening that runs parallel to the wall.

Hinged · Modular Design

Swing Door

ThinWall Trimmed

Concealed-hinge swing door for offices, conference rooms, and general support spaces. Available with or without a 10" kick plate (Type A) for high-traffic and clinical environments.

Pivot · Modular Design

Pivot Door

ThinWall

Top and bottom pivots in place of side-mounted hinges. Used for oversized leaves and signature openings where the door becomes an architectural element.

Sliding · Versatile

Barn Door

2" stiles, 4" top rail. Top-hung sliding hardware with an exposed architectural track.

Sliding · Wall-recessed

Pocket Door

Sliding panel that disappears into a wall cavity when open. Specified where floor space is at a premium and a flush wall face is desired in the open position.

Quick Reference

At a Glance

Every option offered on this page in one compact view explore the full detail in the sections below.

Door Profiles

Slim-profile stiles and rails ADA-compliant kick plate available.

2" StileStandard slim profile across both ThinWall and Trimmed systems.
4" StileDeeper mortise pocket for specialty locking functions.
5" Top RailDefault rail proportion symmetrical top and bottom.
10" Kick PlateADA-compliant smooth base for high-traffic openings.

Lock Functions

Standard and 4"-stile functions for every opening type.

PassageLatch only, no locking. Operates from both sides at all times.
OfficeKeyed entry outside with thumbturn inside.
StoreroomAlways locked outside; inside lever always included.
ClassroomOutside lever locked by key; inside lever always included.
PrivacyThumbturn locking with emergency release on the outside.
Other SpecialtyIndicator locks, dual-cylinder, and code-required functions.

Lever Handles

Mortise lever options Clear or Matte Black.

PortoRounded lever with full return. Default on all swing doors.
MilanSoftly arched lever, tapered end. Same functions, no upcharge.
ViennaL-shaped minimalist tube lever. Same functions, no upcharge.
ZurichFlat angular blade, tapered point. Same functions, no upcharge.
HagerANSI commercial lever required for storeroom, classroom, and heavy-use spaces.

Ladder Handles

Pulls for swing and sliding doors at three scales.

18" LadderStandard pull on all sliding doors.
36" LadderMid-scale upgrade pull for swing or sliding.
72" Locking LadderFloor-locking double-door handle with built-in thumbturn.

Finish Options

20 standard powder-coated and anodized finishes custom RAL on request.

Matte Black
Anodized Silver
Dark Bronze Anodized
Anodized Black
Sky White
Fashion Grey
New York Bronze
Apollo White
Seawolf Grey
Grey Brown
Bone White
Cosmic Grey
Hartford Green
Brick Red
Ivory
Statuary Bronze
Synergy Red
Sandstone
Heritage Bronze
Blue

Panel Inserts

Standard glass plus factory-applied panel upgrades.

Clear 1/4" GlassStandard tempered safety glass default on every door.
3/4" Laminate Panel InsertSolid laminate panel in place of glass; Wilsonart, Stevens, or Arkopa finishes.
Premium Laminate PanelHigher-grade textured, woodgrain, and designer laminate collections.
Frosted GlassVinyl applique or acid-etched frosting in any pattern.
Custom VinylLogos, room numbers, wayfinding, and bathroom indicators.
Faux Mullions1" non-structural mullions surface-applied to the glass.

Mortise Locks

Common Euro-profile keyway across both door types.

Swing Door LatchStandard mortise latch paired with every lever handle.
Sliding Door LockLocking mortise body for sliding door applications.

Misc Options

Closers and accessories that complete the opening.

Swing Door CloserSurface-mount closer; required for ladder-handle swing-door applications.
Magnetic Hold-OpenFloor-mounted catch that holds swing doors open at any pre-set angle.
Access ControlPrep for card readers, keypads, and electric strikes.
Roller CatchAdjustable roller that holds a non-latching swing door closed.

02 · Door Anatomy

Door Profiles

Every Linea Motion door uses our 2" stile profile as the standard across both the ThinWall and Trimmed systems. Top rail and kick-plate dimensions vary by application: the 5" rail is standard on most swing doors, with a 10" kick plate added for high-traffic spaces. Barn doors use a 4" rail.

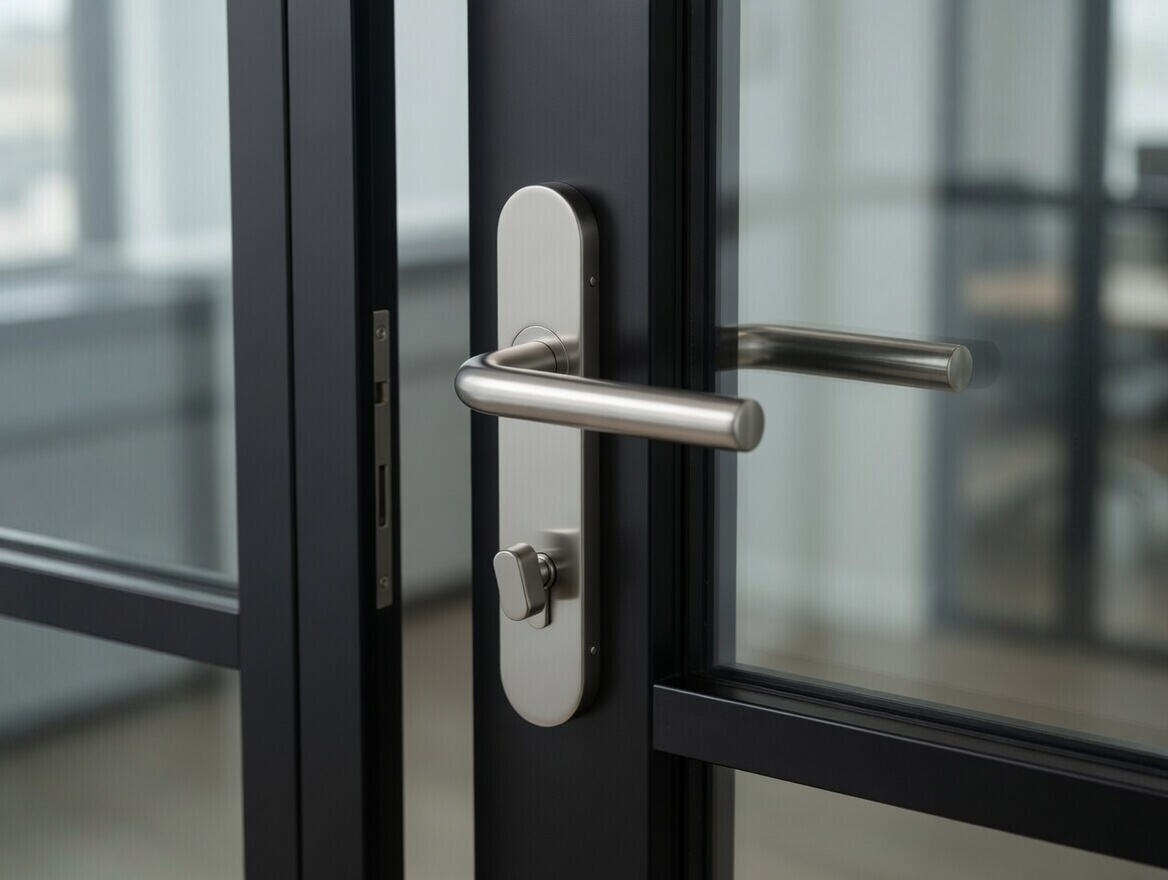

Stile Width

2" Standard · 4" Upgrade

Standard

2in

Standard stile width

The default vertical edge profile across both ThinWall and Trimmed systems. Carries the LM Standard Lever Handle, concealed hinges, and a passage or keyed-entry mortise without modification.

Used onPassage · Office · Keyed entry
AestheticMinimal, frameless read
Glass areaMaximized

Upgrade

4in

Deeper-mortise stile

Required wherever a deeper lock pocket is needed for additional hardware deadbolts, indicator turns, or specialty trim. The wider stile preserves frame strength around the lockset.

Required forStoreroom · Classroom · Privacy
HardwareHager · Specialty
Lock bodyMortise + deadbolt

Bottom Rail / Kick Plate

5" Standard · 10" ADA

Standard

5in

Standard bottom rail

The default condition on Type B swing doors. A clean, balanced proportion that visually mirrors the 5" top rail and keeps glass area as large as possible.

Used onType B · Office · Conference
Glass areaMaximized
AestheticSymmetrical top & bottom

ADA

10in

ADA-compliant kick plate

Provides the 10" smooth, uninterrupted bottom surface required by ADA for wheelchair footrests and impact protection in high-traffic and clinical environments.

Used onType A · Clinical · Healthcare
ComplianceADA 404.2.10
AestheticHeavier, protective base

03 · Locking

Lock & Stile Compatibility

Every Linea Motion swing door ships with the LM Standard Lever Passage Handle.

Engineered rendering

Standard

Standard Handles (Mortise)

Configurable as a passage set or with keyed entry. The 2" stile profile carries this hardware without modification on both ThinWall and Trimmed doors.

PassageLatch only, no locking. Lever operates from both sides at all times.
OfficeKeyed entry from outside with thumb turn inside.

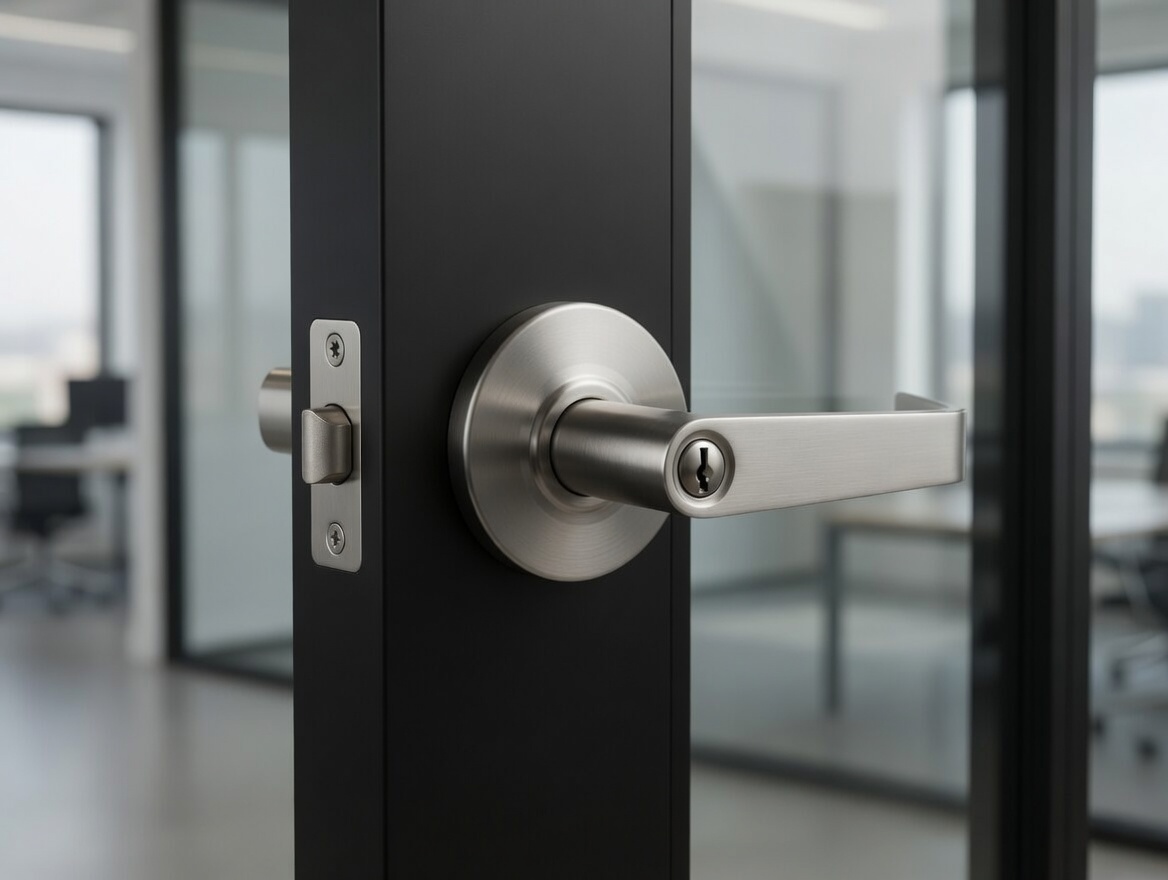

4 inch stile with Hager commercial lever

Engineered rendering

Upgrade

Additional Functions (Requires 4" Stile)

Functions that house additional locking mechanisms require a deeper mortise pocket. Standard functions are also available on the 4" stile.

StoreroomAlways locked from outside; inside lever always included.
ClassroomOutside lever locked by key; inside lever always included.
PrivacyThumbturn locking. Emergency release on the outside.
Other specialtyIndicator locks, dual-cylinder, and code-required functions.

04 · Finishes

Finish Options

All aluminum framing is powder-coated in our standard palette below. Matte Black is the most commonly specified finish, but any color in the standard range is available at no upcharge. Anodized and custom RAL options on request.

Most Specified Stock Material

Matte Black

Stock Material

Anodized Silver

Dark Bronze Anodized

Anodized Black

Sky White

Fashion Grey

New York Bronze

Apollo White

Seawolf Grey

Grey Brown

Bone White

Cosmic Grey

Hartford Green

Brick Red

Ivory

Statuary Bronze

Synergy Red

Sandstone

Heritage Bronze

Blue

All standard finishes available on request. Color reproduction is approximate request a physical sample for final selection.

05 · Lever Handles

Hardware Swing Door Levers

Every Linea Motion swing door ships with the Porto lever by default same hardware family across ThinWall and Trimmed. Porto, Milan, Vienna, and Zurich are interchangeable at no up charge; the Hager is required wherever ANSI commercial functions are specified.

Standard

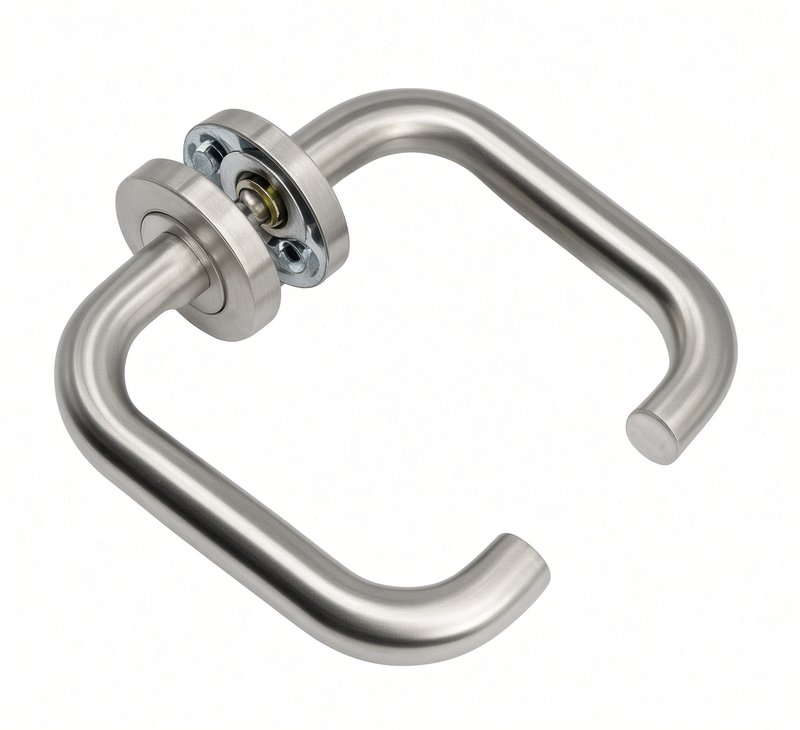

Porto

Rounded lever with full return

Function: Office / Passage
Stiles: 2" or 4"
Finish: Clear / Matte Black

Standard

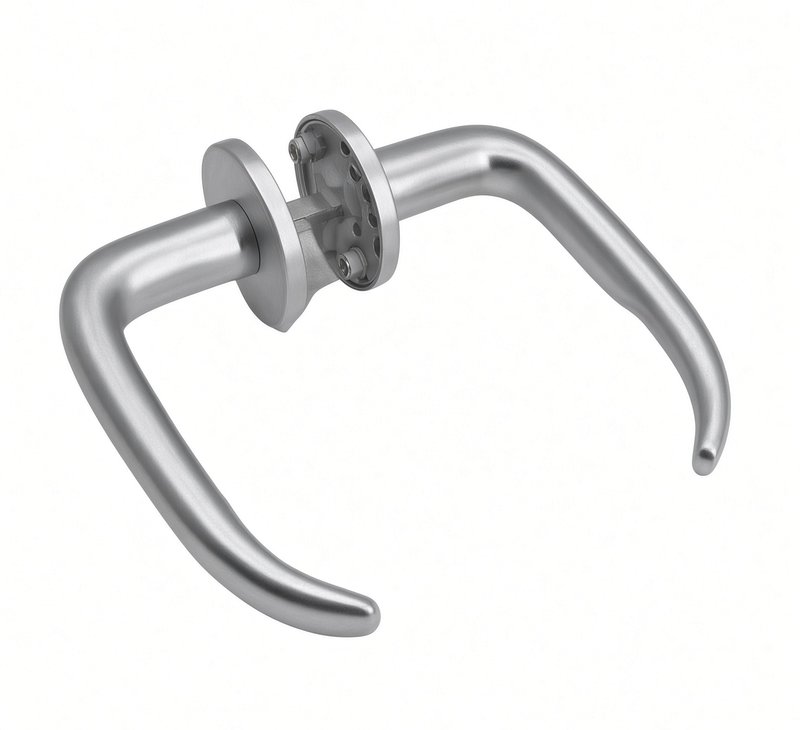

Milan

Softly arched lever, tapered end

Function: Office / Passage
Stiles: 2" or 4"
Finish: Clear / Matte Black

Standard

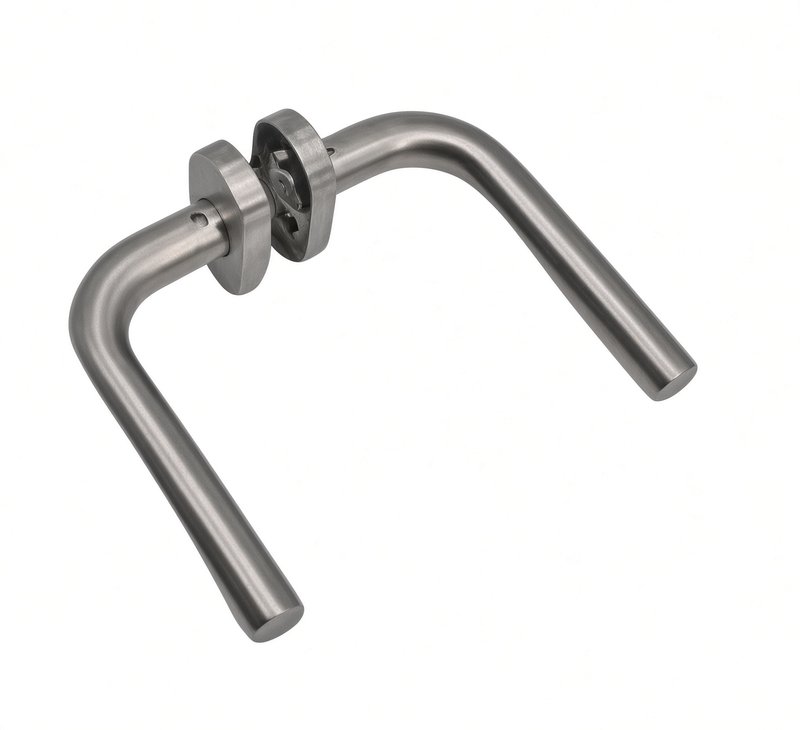

Vienna

L-shaped minimalist tube lever

Function: Office / Passage
Stiles: 2" or 4"
Finish: Clear / Matte Black

Standard

Zurich

Flat angular blade, tapered point

Function: Office / Passage
Stiles: 2" or 4"
Finish: Clear / Matte Black

ANSI Commercial Upgrade

Specify where code requires

Upgrade

Hager (Multi-Function)

Required for storeroom, classroom, and other heavy-use spaces

Function: All ANSI commercial
Stiles: 4" only
Finish: Clear / Matte Black

Lock cylinder: All standard levers are paired with a Linea Motion Mortise Lock System and can be paired with any LM Mortise Hardware.

06 · Ladder Handles

Hardware Ladder Handles

All ladder handles are compatible with both 2" and 4" stile profiles. The 18" handle is included as standard on all sliding doors. Ladder handles can be specified on swing doors as an upgrade to the standard lever (door closer required).

Standard

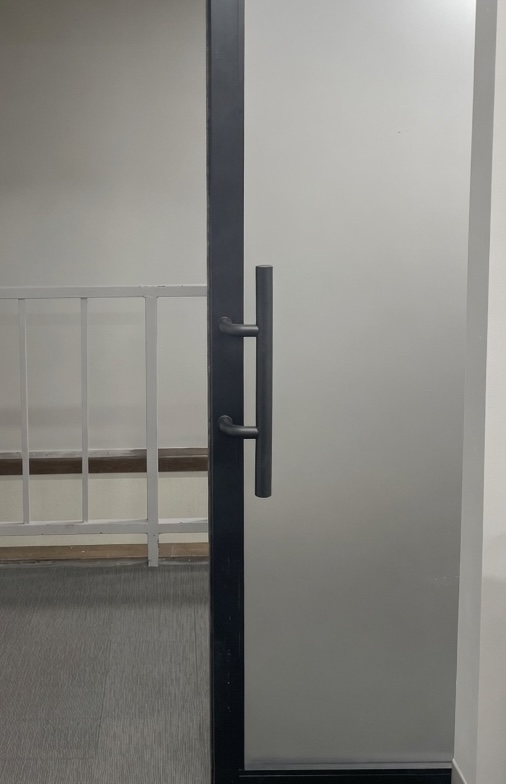

18" Ladder Handle

The smallest pull in the family. Standard on all barn doors; available as an upgrade on swing doors when paired with a closer.

Bar diameter: 32 mm
Stem diameter: 25 mm
Center-to-center: 203 mm (8")
Overall length: 457 mm (18")
Function: Locking / non-locking
Colors: Matte black / Brushed steel

Upgrade

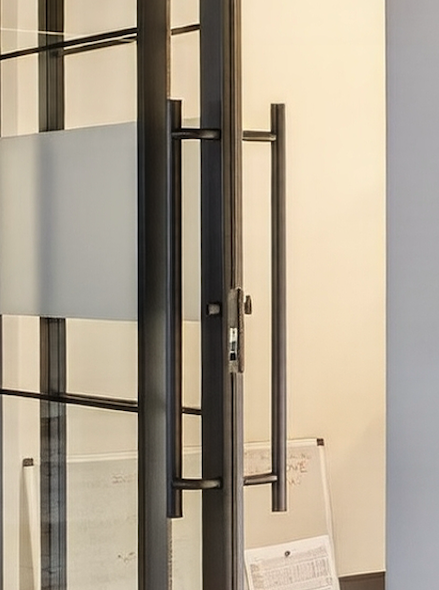

36" Ladder Handle

Offers a more dramatic look conference rooms, executive offices, and high-end commercial spaces.

Bar diameter: 32 mm
Stem diameter: 25 mm
Center-to-center: 762 mm (30")
Overall length: 915 mm (36")
Function: Locking / non-locking
Color: Matte black

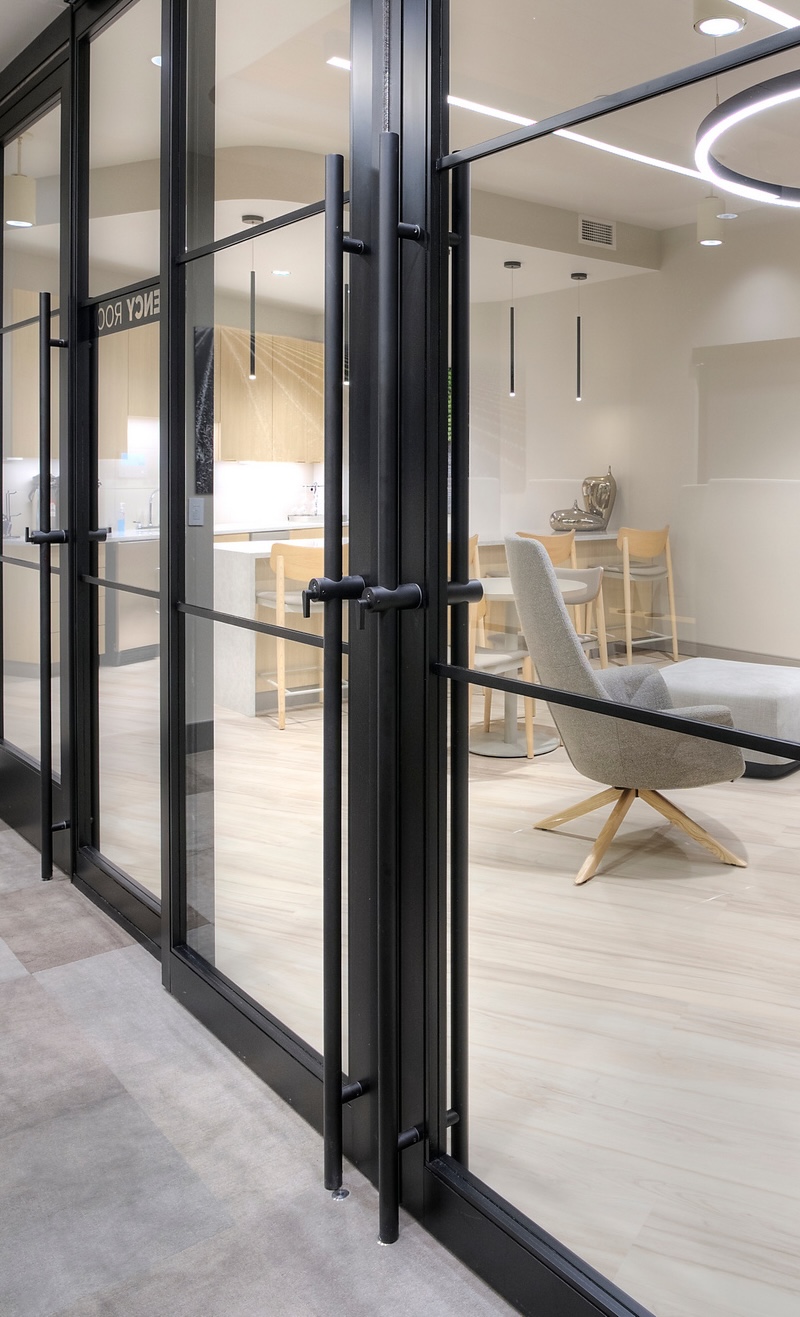

72 inch locking ladder handle on a glass door

Upgrade

72" Locking Ladder Handle

Floor-locking with easy-operate thumbturn. Lower bolt drops into stainless socket in floor.

Bar diameter: 1¼" (32 mm)
Stem diameter: 25 mm
Overall length: 72" (1829 mm)
Center-to-center: 36" (914 mm)
Standoff: 2¹⁄₁₆" (52 mm)
Locking: Floor bolt with thumbturn
Colors: Matte black / Brushed steel

07 · Mortise Lock

Mortise Lock System

Engineered for rigorous daily use, these systems are precision-scaled to integrate seamlessly with our slim-profile stiles, ensuring that visual integrity is never sacrificed for security.

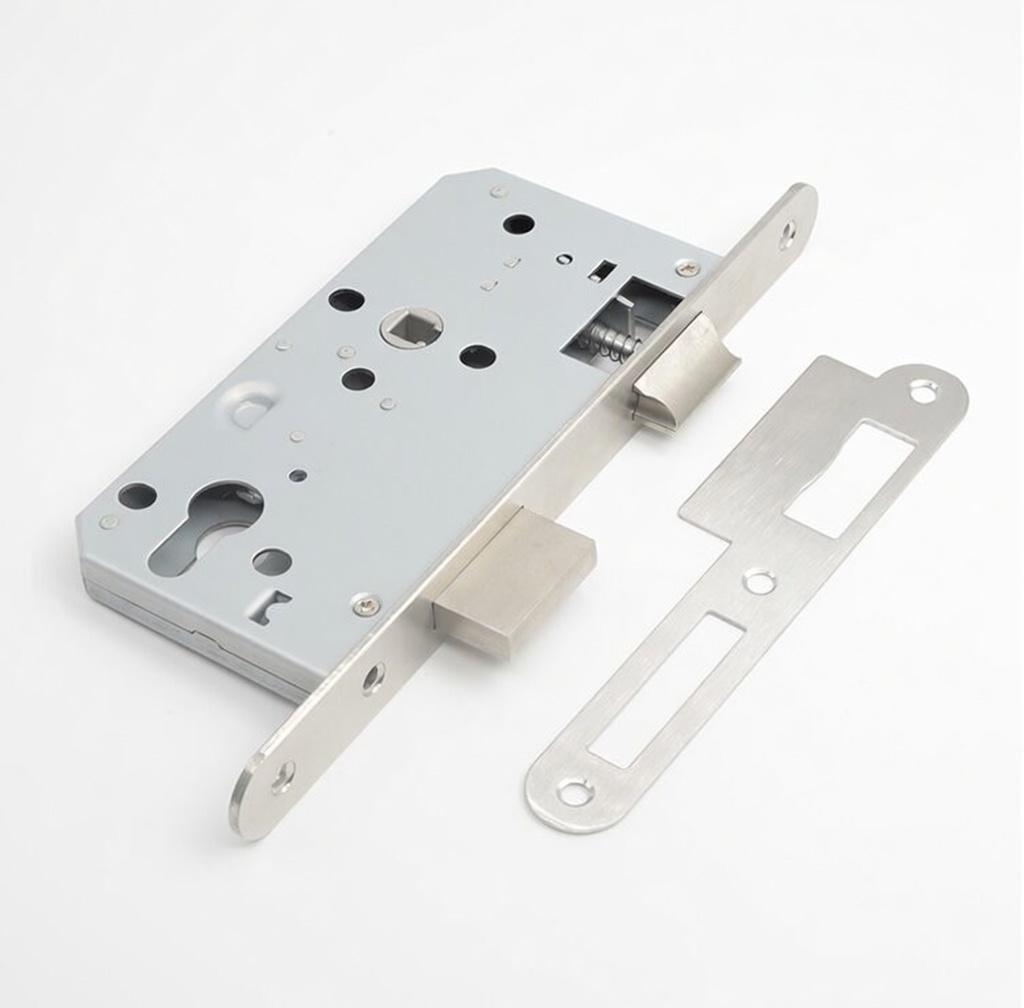

Swing Door Latch

Lock body	Mortised into the door stile. Latch + deadbolt with Euro-profile cylinder cutout.
Strike plate	Stainless steel, mortised into the jamb. Factory-aligned with the lock body.
Cylinder	70 mm Euro-profile, double-cylinder or thumbturn. Three keys included per cylinder.

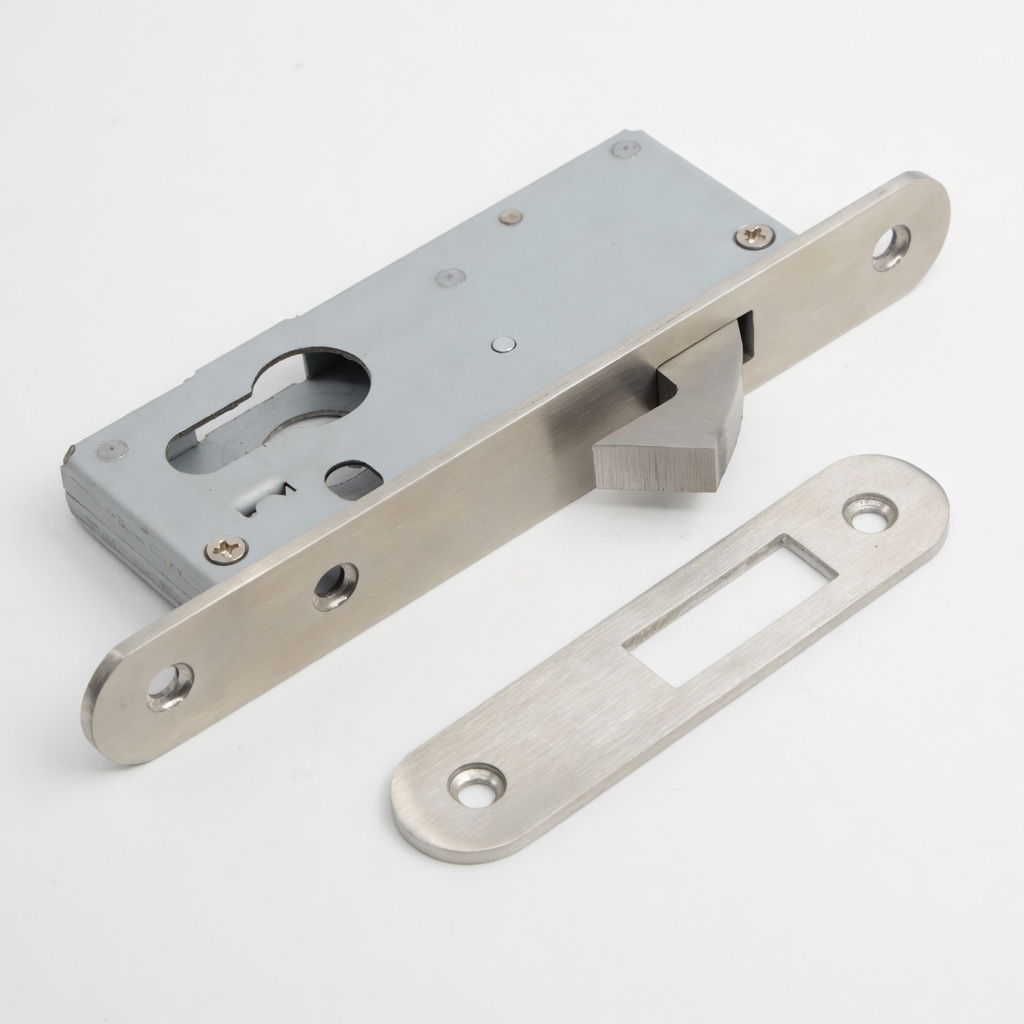

Sliding Door Lock

Hook bolt	Compatible with all sliding door handles, excluding the 72" Ladder Floor-Locking built-in.
Edge-pull strike	Recessed stainless strike plate sits flush in the jamb pocket; no protrusions in the door path.
Cylinder	Same 70 mm Euro-profile cylinder as the swing system one keyway across the entire opening schedule.

Sliding door mortise lock with hook bolt and strike plate

08 · Hinges

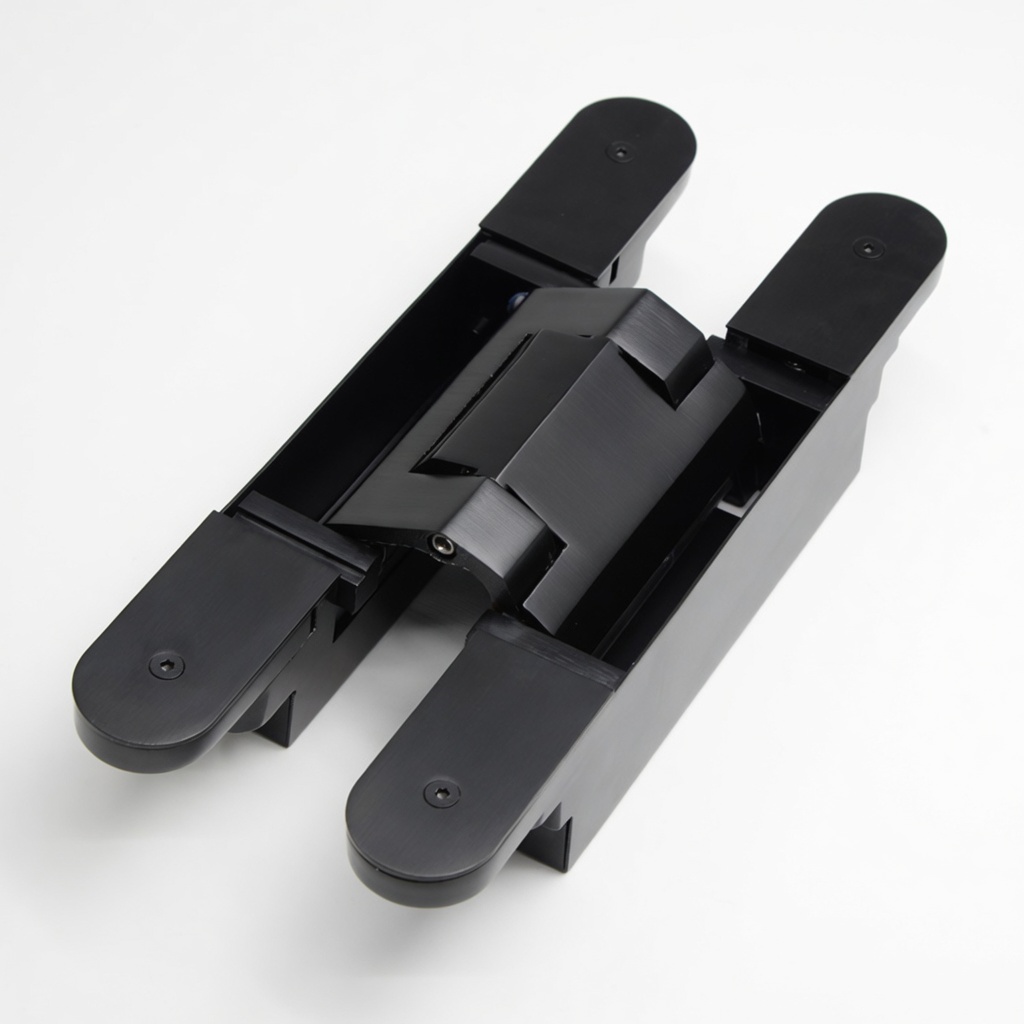

Concealed Hinges

Every Linea Motion swing door ThinWall and Trimmed alike rides on three-axis concealed hinges. They disappear into the door and jamb when closed, preserving the frameless look the system is built around, and they offer post-install adjustment in all three directions to dial in the reveal.

Adjustment

Up / Down	± 2 mm
Left / Right	± 1.5 mm
Depth	± 2.5 mm

Capacity

Body	165 × 32 × 28 mm
Capacity	100 kg per pair
Hinges per leaf	Two (standard)
Oversized leaves	Three hinges

09 · Panel Inserts

Panel Inserts

Panel options and surface treatments applied at our facility before the door ships. No third-party vinyl shops, no retrofitting on site doors arrive ready to install.

Standard

Clear 1/4" Glass

Standard tempered safety glass. Maximizes natural light and sightlines across the door the default panel on every Linea Motion door unless otherwise specified.

Standard

3/4" Laminate Panel Insert

Solid laminate panel in place of glass for any door type. Available in most Wilsonart, Stevens, or Arkopa finishes send us a laminate reference for pricing.

Panel Upgrades

Upgrade

Premium Laminate Panel

Higher-grade laminates and specialty surfaces textured, woodgrain, and designer collections beyond the standard offering. Send us a laminate reference for pricing and lead time.

Upgrade

Frosting

Vinyl applique or acid-etched frosting in any pattern. Durable, completely customizable, and available across the full glass surface or as a partial band.

Upgrade

Custom Vinyl

Logos, room numbers, wayfinding, and bathroom indicators. Cut and applied in house send us the artwork or we'll build it from your brand kit.

Upgrade

Faux Mullions

1" non-structural mullions surface-applied to the glass. Delivers a divided-light look at a fraction of the cost of structurally divided glass.

10 · Misc Options

Misc Options

Closers, hold-opens, catches, and access-control prep the supporting hardware that completes a finished opening.

Swing Door Closer

Standard or heavy-duty surface-mount closer. Required for ladder-handle swing-door applications. Available in brushed steel or matte black.

Magnetic Hold-Open

Floor-mounted magnetic catch with a strike plate at the door bottom. Holds open swing doors at any pre-set angle until manually released.

Access Control

Prep for card readers, keypads, and electric strikes. Coordinate hardware and power requirements with us during shop drawings.

Roller Catch

Adjustable roller and strike that holds a non-latching swing door closed. A quiet alternative to a latch on passage openings.

Looking for something not mentioned?

Reach out we'll find a solution.
