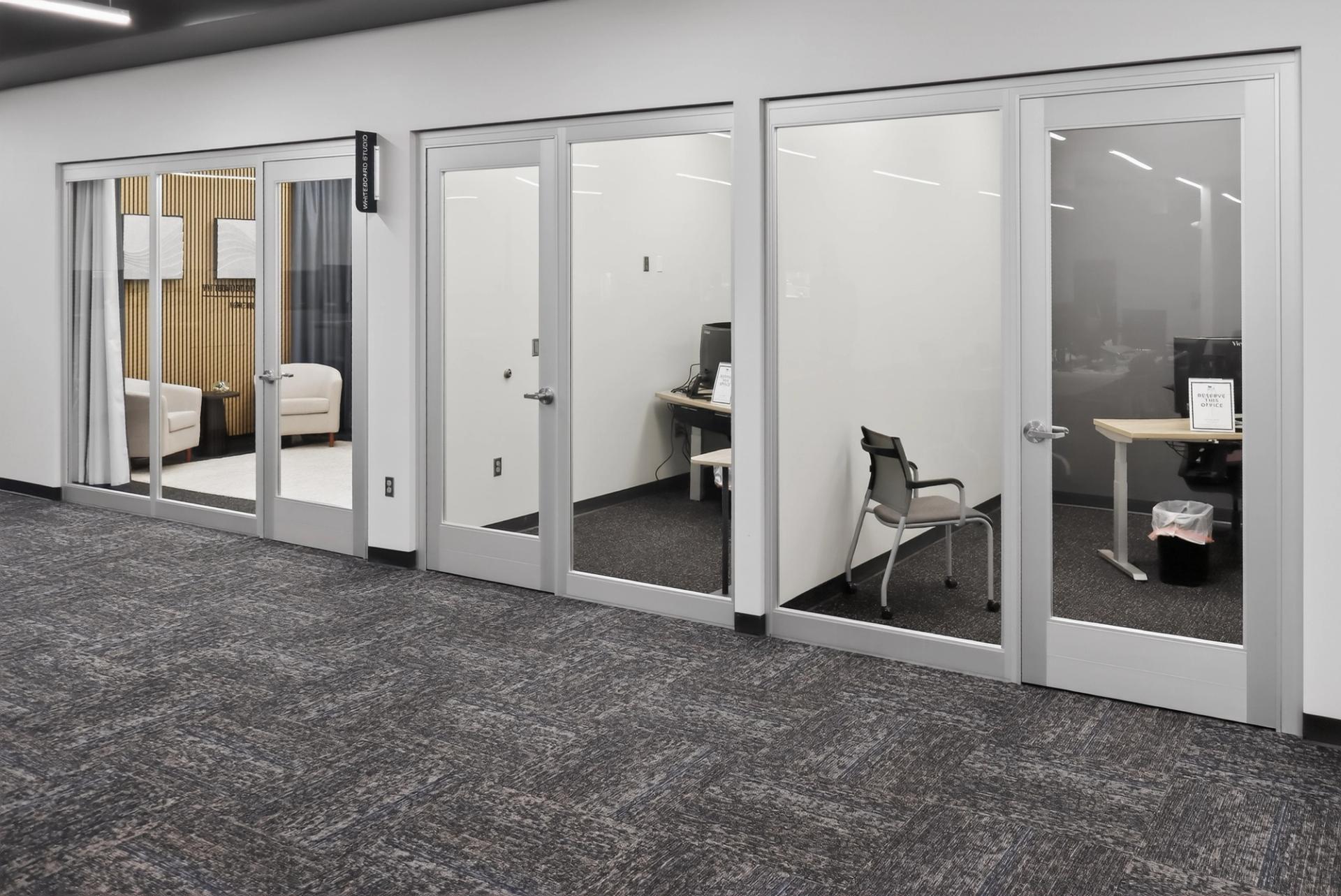

Aluminum Swing Doors

The swing door, done in aluminum

For openings that need a hinged door egress paths, lockable rooms, doors on a budget Linea Motion’s aluminum swing doors give you the same design language as the slider and partition system. Same finish palette, same stile profiles, same hardware family across ThinWall and Trimmed.

Locking and hardware

Every door ships with a passage lever set. From there, function is determined by stile width. Access control is available on any configuration:

• 2″ stile (standard) - passage, office (keyed entry with thumb turn). No modification required on either ThinWall or Trimmed.
• 4″ stile (upgrade) - storeroom, classroom, privacy, dual-cylinder, indicator locks, and code-required functions. Required for any locking mechanism beyond the standard mortise.

Confirm intended function at approval stile dimensions cannot be changed after fabrication begins. See Lock & Stile Compatibility for the full matrix.

Where swing doors fit

• Private offices - where a swing is preferred over a slider for acoustic reasons or floor-plan layout.
• Restrooms and locker rooms - privacy and indicator functions on the 4″ stile.
• Storerooms, IT closets, and back-of-house - storeroom function with key-only entry.
• Classrooms and clinics - classroom function with outside lever lockable by key.

Sizes, glazing, and finish

Standard swing panels up to 48″ wide and 120″ tall. Standard glazing 1/4″ tempered with security glass available. Frames powder-coat in the standard palette.
